Scanner
KDC470 & KDC475 Barcode SmartSled®
The KDC470 and KDC475 are discontinued and have been replaced by the KDC480 and KDC485. Companions and charging cradles are compatible across all KDC470/475/480/485 models.
Product Highlights
Scanner
Product Category
Koamtac
Trusted Brand
Enterprise Use
Designed for business operations
Support Ready
Consultation and technical service
Product Overview
Whether you need to read barcodes or RFID tags this is the KDC for you. The KDC470 and KDC475 are rugged devices with an IP65 rating and are built to last. No matter what type of data you need to collect or how you need to collect it, there is a companion module to get the job done quickly and accurately. Charge your device with our unique charging cases and never miss a minute of productivity.
Attach to ANY Smartphone or Tablet

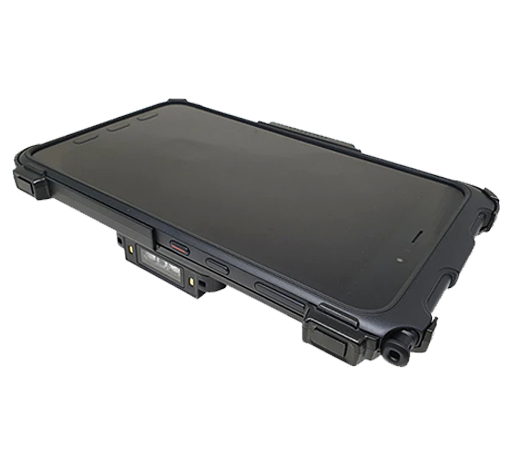

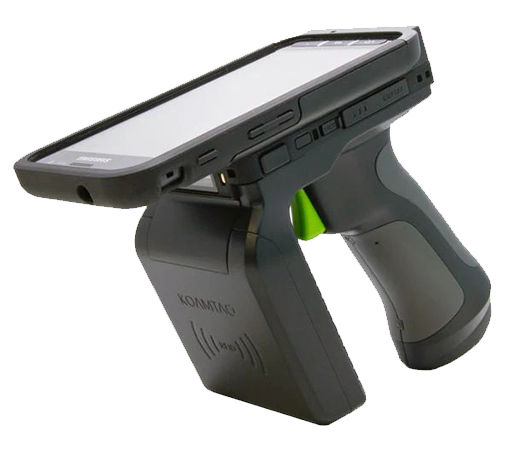

The KDC470 and KDC475 can be attached to any smart device via a custom case to create a sled scanning solution. This unique modular design allows you to upgrade your smart device without worrying about replacing the entire scanning solution. Your investment in a KDC is protected regardless of upgrades in smartphone and tablet technology.
Barcode Reading
At their base, the KDC470 and KDC475 are superior barcode scanners. Both the KDC470 and KDC475 are available in various models: 1D Laser, 1D CCD, and 2D Imager, so you can read a variety of barcodes in any industry. The KDC475 offers downward angled scan engines, allowing you to hold your device at level while scanning barcodes at a lower height. The KDC connects via Bluetooth Classic or Bluetooth Low Energy technology for easy pairing and data transfers.
Technical Specifications
Product Features
Physical Characteristics
KDC470 Size (w/o case): 2.56″ x 4.13″ x 0.62″ (65 mm x 105 mm x 15.8 mm)
KDC470 Weight: 3.07 oz (87g)
KDC475 Size (w/o case): 2.56″ x 4.13″ x 0.94″ (65 mm x 105 mm x 24 mm)
KDC 475 Weight: 3.1 oz (88 g)
Electrical Characteristics
Battery: Lithium-ion (3.7V DC, 1100 mAh)
Charging: via Micro USB connector, Charging Cradle
Interfaces
Bluetooth® V2.1+EDR (Class2): HID, SPP/MFi
Bluetooth® Low Energy 5.0: HID/SPP
Micro USB/Type-C USB: USB HID, USB Serial (Android with an integrated case)
Lightning: Serial (iOS with an integrated case)
User Environment
Ingress Protection Rating: IP65
Drop Spec: 5′ (1.5 m)
Operating: -4˚F to 122˚F (-20˚C to 50˚C)
Storage: -4˚F to 140˚F (-20˚C to 60˚C)
Humidity: 5% to 95% (non-condensing)
